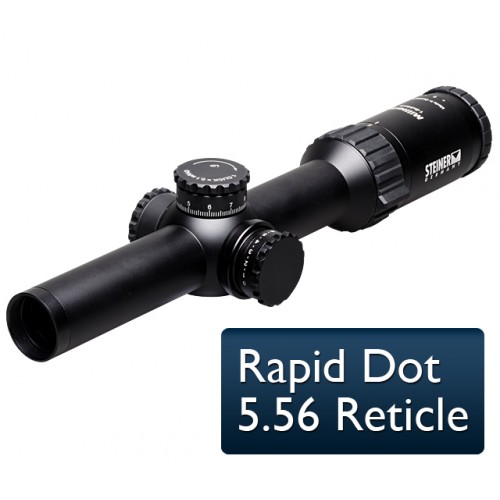

Steiner 1-5x24-Military RifleScope 5.56 Rapid Dot Reticle Model 5571

Steiner 1-5x24-Military RifleScope 5.56 Rapid Dot Reticle Model 5571
Steiner Model: 5571
Availability: In Stock
Price: $2,998.99

See lower price in cart!

Please select an option below:


You will be contacted after your purchase to select the ring size of your choice. This item will be sent after the purchase of your scope.

Magnification 1–5x
Objective Size 24 mm
Magnification Change 5x
FOV @ 100 m ≥ 36,0 – 7,2 m
Exit Pupil 11,5 – 4,8 mm
Eye Relief 90 mm
Twilight Factor 4,9 - 10,9
Battery CR 2450
Diopter Setting +2 to -3 diopters
Tube Diameter 30 mm
Focal Plane Location Second focal plane
Reticle 5.56 Rapid DOT
Illumination Rotary Digital Control
Operating Temperature -25 to +63 °C
Storage Temperature -35 to +70 °C
Nitrogen-Pressure-Filling Fog proof inside
Water Pressure Proof up to 10 m
Elevation Adjunstment Knob Resettable to Zero with Wrench Visual & Tactile Indication of Turns
Elevation Adjunstment Increment 1 cm (0.1 mrad)
Elevation Range @ 100 m 320 cm (32.0 mils)
Windage Adjustment Increment 1 cm (0.1 mrad)
Windage Range @ 100 m ± 160 cm (16.0 mils)
Parallax Adjustment Fix at 100 m
Weight with caps
585 g
Weight without caps
555 g
at 0 diopter
≤ 295 mm

Steiner M5xi 1-5X24mm Military RifleScope 5.56 Rapid Dot Reticle Counter-Clockwise adjustments

Designed to meet the needs of Military users worldwide, the Steiner M5Xi 1-5x24mm Military Riflescope sets the standard for accuracy and ruggedness. The Model 5571 scope is designed for close quarter combat situations. The 30mm platform is designed to fit well on any AR style rifle to give the user confidence to engage with total accuracy. The model 5571 scope comes equip with the 5.56mm Rapid dot reticle.

What's in the box:  Butler Creek ocular and objective covers,  sunshade and allen wrench

Download Users Guide / Manual


  • Broad band Anti Reflection coated optic guarantee a maximum light transmission of greater than 90 %.
  • A rugged 30mm compact 1-pc body tube main tube construction.
  • Integrated rotary side focus and digital illumination system knobs mounted on the turret for comfort and ease of use with or without gloves on.
  • Elevation knob designed to provide both visual and tactile indication of rotational position.
  • Eye relief does not vary appreciable over power range. The image remains sharp and focused over the entire field of view.
  • Front focal plane, so sub-tension remains unchanged over the magnification range for quick and easy target identification and accuracy.
  • 11 Illumination steps (7 Night & 4 Day) with two off-positions at each end, plus 10 standby (light-off) settings.
  • The illuminated, glass etched reticle is designed to provide a means to determine both bullet drop plus measurement capability regardless of day or night light conditions.
  • Fast focus eyepiece.
  • Fully waterproof to 10 meters.
  • Aircraft grade machined aluminum knobs for positive grip and durability in all conditions.
  • True 5x magnification — STEINER’s larger magnification of true 5x results in more details for the rifleman to see for quick & precise target identification.
  • Increased field of view and elimination of tunnel effect — Quick & easy target acquisition with low 5x magnification thanks to extra large XL field of view. Increased visual convenience for the rifleman thanks to elimination of tunnel effect (tunnel effect is a visual proof for imperfect optical calculation).
  • Exterior product design optimized for maximum operator convenience and ease of handling. XL extra large & non-slip knobs for use with or without gloves (elevation, windage, parallax and illumination knob). Non-slip diopter adjustment and non-slip magnification (power) ring.
  • Interior product design optimized to reach maximum elimination of stray light. Special interior design and surface treatment eliminates stray light. Stray light interferes with the optical path and results in significantly reduced visual performance.
  • Illumination mechanism with tactile stand-by position in between each setting. Quick & easy stand-by position helps to avoid excessive battery consumption. Within a split of seconds the rifleman is back in the required illumination setting.
  • Elevation adjustment with unique, patented “STEINER DuoScale” — a unique double turn construction with second rotation hiding while not active. No more confusion if the elevation is on 1st or 2nd turn. Very fast & simple to read the scale and no more risk of misinterpretation (1st or 2nd turn).
  • XL elevation & windage knobs contain also an extra large XL mechanism which performs with maximum precision. Large diameters allow more accurate & precise clicks. This increases the repeating accuracy within the complete adjustment range of 260 clicks of elevation and 120 clicks of windage.
  • Parallax setting visible from shooting position — immediate information and quick adjustment.
  • Tube and knob configuration optimized to allow maximum options for mounting purposes. Illumination knob is integrated with minimum space requirements in the parallax adjustment knob (no extra illumination knob!) Simple & easy to mount on various rifles without having problems caused by limited mounting space. Scope can be mounted in the optimum position to allow maximum operator convenience. Additional equipment (e. g. flash light, laser, …) can easily be mounted alongside the scope
  • All adjustment knobs are 100 % sealed with latest state-of-the-art sealing technology. Absolutely no water can get underneath the STEINER knobs. Performance of click mechanism is secured and can not be obstructed or damaged by frozen ice or humidity.

Our outstanding product features

    Broad band Anti Reflection coated optic guarantee a maximum light transmission of greater than 90 %.
    Shock proof to 900 G's.
    Nitrogen filled to be fog proof inside.
    Fully waterproof to 10 meters.
    As per general military requirements STEINER's genuine military scopes withstand temperature ranges from -35 to +70 °C.
    Illuminated, glass etched MSR (Multi-Purpose Sniper) reticle.
